AIR DRYER CONTROL PANEL
  1.  Home page
  2. Compressor systems
  3. Products
  4. Air dryers
  5. Refrigerated air dryers

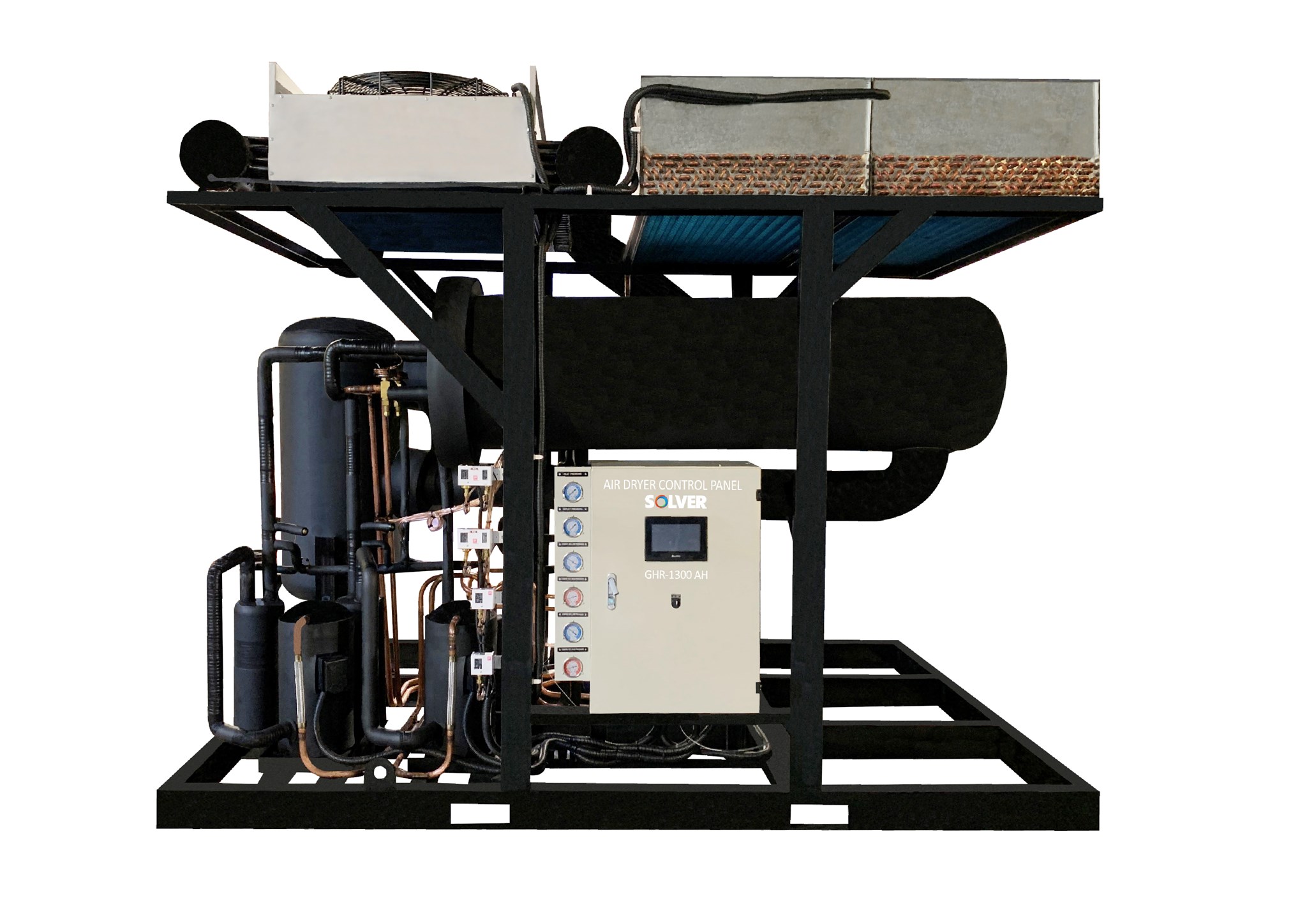

, Picture 1

AIR DRYER CONTROL PANEL

 Short description

Operation condition:

+ Air flow capacity: 130 Nm3/min

+ Working pressure: 0.6~1.0 Mpa

+ Pressure drop: ≤ 0.03 Mpa

+ Inlet air temp: ≤ 60°C

+ Ambient temp: ≤ 38°C

+ PDP: 2~10°C

Product condition New

Call for pricing

Request a quote Request Service, Parts or Support
Add to List
Questions?
Email a friend
  • View detailsOperation condition:+ Air flow capacity: 130 Nm3/min+ Working pressure: 0.6~1.0 Mpa+ Pressure drop: ≤ 0.03 Mpa+ Inlet air temp: ≤ 60°C+ Ambient temp: ≤ 38°C+ PDP: 2~10°CWorking condition:+ Fluid: Air compressure+ Max working pressure: 1.0 Mpa+ Max Inlet air temp: 60°C+ Max ambient temp: 40°CMachi...
  • Reviews0

Operation condition:

+ Air flow capacity: 130 Nm3/min

+ Working pressure: 0.6~1.0 Mpa

+ Pressure drop: ≤ 0.03 Mpa

+ Inlet air temp: ≤ 60°C

+ Ambient temp: ≤ 38°C

+ PDP: 2~10°C


Working condition:

+ Fluid: Air compressure

+ Max working pressure: 1.0 Mpa

+ Max Inlet air temp: 60°C

+ Max ambient temp: 40°C


Machine Dimension:

+ L*W*H: 3200 x 1800 x 2500mm ( Please refer to actual )

+ Weight: 2550 Kgs

+ Air inlet/outlet connection: DN200 flange

+ Cooling method: Air cooling


Electricial data:

+ Power supply: 03Phase/380V/60Hz

+ Power consumption: 26.2Kw

+ Compressor power: 21.25Kw


 Protective device:

+ Overload protection: Trip when compressor current is too high

+ HP switch: The hight-pressure side of the refrigeration system trips when the pressure is too high

+ LP switch: The low-pressure side of the refrigeration system trips when the pressure is too low
